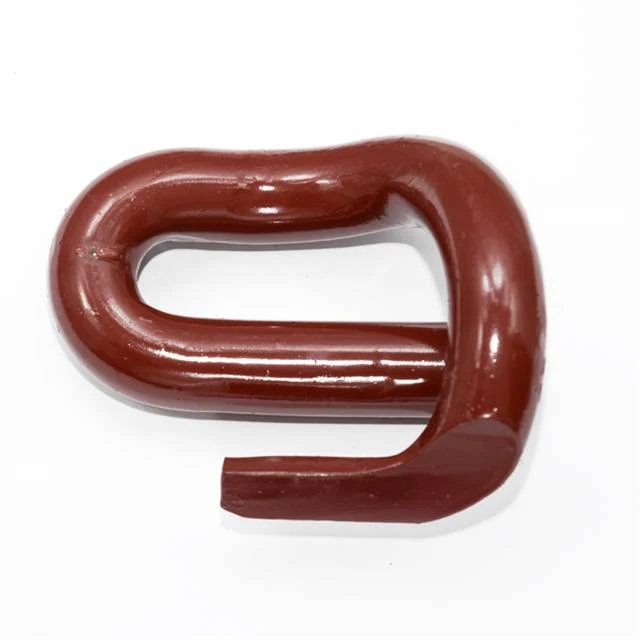

E2063 Rail Clip
The E2063 Rail Clip is a high-performance elastic fastening component that securely fixes rails to concrete sleepers or base plates, maintaining track gauge and alignment. Made from high-strength forged spring steel with hot forging and heat treatment, it provides a stable clamping force, resists rail movement, reduces track stress, absorbs vibration, and ensures long-term reliability...
- Product Introduction
The E2063 Rail Clip is a high-performance elastic fastening component that securely fixes rails to concrete sleepers or base plates, maintaining track gauge and alignment. Made from high-strength forged spring steel with hot forging and heat treatment, it provides a stable clamping force, resists rail movement, reduces track stress, absorbs vibration, and ensures long-term reliability. Wuxi Lanling Railway Equipment Co., Ltd.'s E2063 Rail Clip provides our customers with reliable rail track safety with competitive prices, reliable quality, and attentive customer service. We have ISO9001:2015 and CRCC certificates, and we also have our own R&D department to provide OEM services to meet your requirements.
Product Specification
|
Product Name: |
Elastic Rail Clip E2063 |
Diameter: |
Ø 20mm |
|
Raw material: |
60Si2Mn |
Hardness: |
HRC44-48 |
|
Weight: |
0.80kg/pc |
Toe Load: |
Over 2750 bls (Deflection 11.1mm) |
|
Surface: |
According to customer requirements |
||
| Under Pressure | ≥950kg | ||
|
Fatigue: |
5 million cycles without cracking |
||
|
Certification: |
ISO9001:2015 |
||
|
Application: |
Rail Fastening System | ||
Product Advantage
1. Safe and reliable design and quality.
2. No thread self-tensioning design, the system does not need to check the torque
3. Wide range of designs for various applications and environments. It is widely used all over the world.
Product Quality
We understand that product quality is the foundation of long-term cooperation. As our products are used in the railway industry, where safety and reliability are critical, quality control is never compromised. LanLing E2063 Rail Clips are manufactured under strict quality control to ensure reliable performance and long service life.
Packaging & Transportation
With customers in both domestic and international markets, our product packaging is designed to meet the requirements of long-distance transportation. We use wooden crates, steel pallets, and woven bags to ensure moisture resistance and impact protection during shipping. Packaging solutions can also be customized according to shipment volume and specific customer requirements.
FAQ – E2063 Rail Clip
Q1: What is the main function of the E2063 Rail Clip?
It provides elastic clamping to securely fasten rails to sleepers, maintaining track gauge and preventing movement under dynamic loads.
Q2: What material is used for E2063 Rail Clips?
High-strength forged spring steel, ensuring excellent fatigue resistance and durability.
Q3: Why is hot forging used in manufacturing E2063 Rail Clips?
Hot forging creates a uniform microstructure, improving mechanical strength, fatigue resistance, and long-term reliability.
Q4: Where can E2063 Rail Clips be applied?
They are suitable for conventional railways, metro systems, high-speed lines, and heavy-haul railways for both new construction and maintenance projects.
Q5: Can LanLing provide customized E2063 Rail Clips?
Yes, specifications, surface treatment, and dimensions can be customized based on project requirements.
Q6: How are E2063 Rail Clips packaged for export?
They are packed in moisture-proof and impact-resistant export packaging to ensure safe delivery during long-distance transportation.
