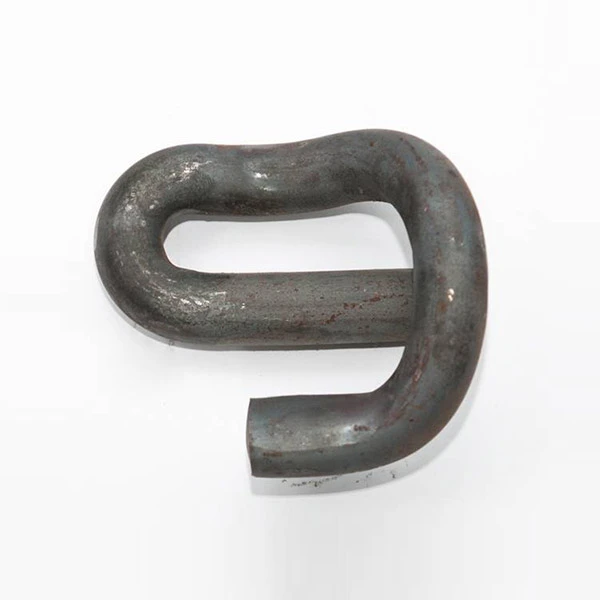

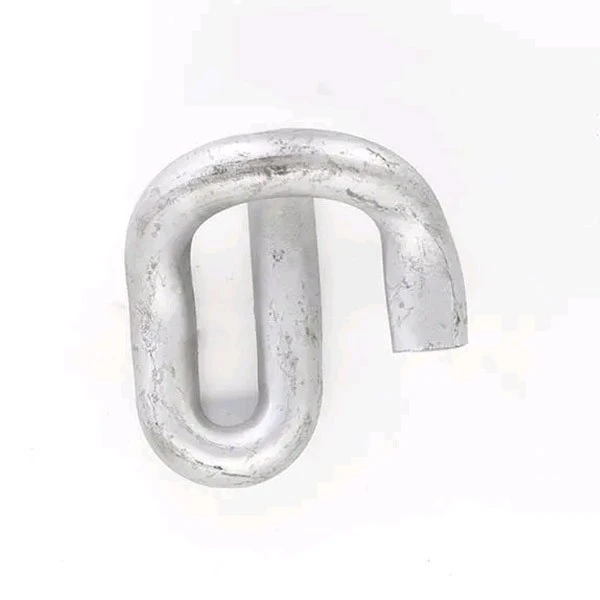

E2055 Rail Clip
Wuxi Lanling Railway Equipment Co., Ltd., produces the E2055 Rail Clip and other standard rail parts. As a leading railway fastener manufacturer in China, with a production license from the Ministry of Railways of China, advanced technology, high-precision testing instruments, and services, our E2055 Rail Clip and other railway fastener products have been widely exported to countries all over the world and have been well received...
- Product Introduction
Wuxi Lanling Railway Equipment Co., Ltd., produces the E2055 Rail Clip and other standard rail parts. As a leading railway fastener manufacturer in China, with a production license from the Ministry of Railways of China, advanced technology, high-precision testing instruments, and services, our E2055 Rail Clip and other railway fastener products have been widely exported to countries all over the world and have been well received. All products can be customized according to the customer's drawings and samples; welcome to inquire!
Product Features
1) Advanced technology and high-quality raw material selection;
2) Various types of products can be produced according to the actual needs of customers;
3) The product has high hardness and strong compressive and tensile resistance, and is suitable for high-strength and high-pressure use environments;
4) High-quality quality enhances the added value of fasteners and prolongs the shelf life;
E2055 Rail Clip Technical Parameters
|
Material |
Diameter (Ø) |
Weight |
Hardness |
Fatigue Life |
Standard |
Surface Treatment |
Application |
|
60Si2Cr |
Ø20 |
0.80 kg |
HRC 42-47 |
3-5 million cycles |
GB/T 1222, DIN 17221 |
Black, Galvanized, Ordinary, Dacromet |

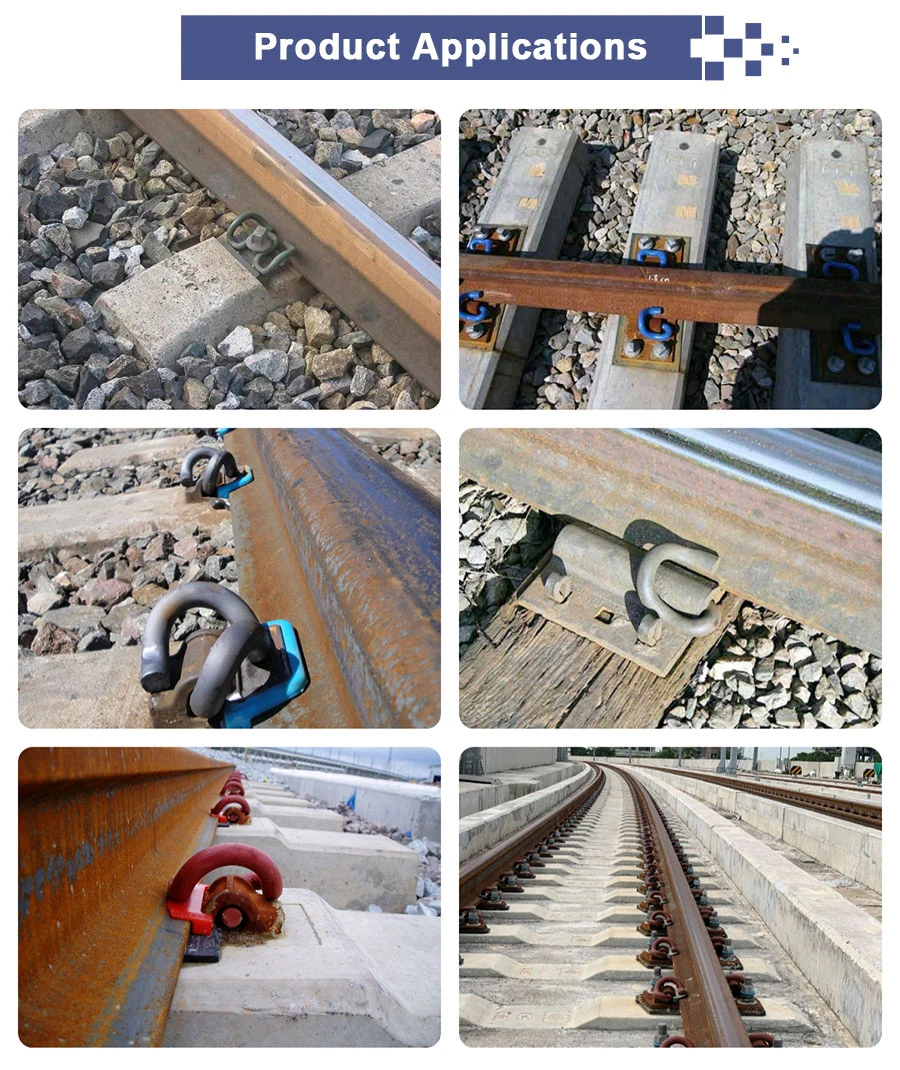

Railways, Subways, High-speed railways, Tunnels |
|
55SiMn |
Ø20 |
0.80 kg |
HRC 42-47 |
3-5 million cycles |
GB/T 1222, DIN 17221 |
Galvanized, Ordinary, Dacromet |
Railways, Subways, High-speed railways, Tunnels |
|
38Si7 |
Ø20 |
0.80 kg |
HRC 42-47 |
3-5 million cycles |
GB/T 1222, DIN 17221 |
Galvanized, Ordinary |
Railways, Subways, High-speed railways, Tunnels |
Product Quality
We understand that product quality is the foundation of long-term cooperation. As our products are used in the railway industry, where safety and reliability are critical, quality control is never compromised. Lanling E2055 Rail Clips are manufactured under strict quality control to ensure consistent performance, long service life, and reliable operation in demanding railway environments.
Packaging & Transportation
With customers in both domestic and international markets, our product packaging is designed to meet the requirements of long-distance transportation. We use wooden crates, steel pallets, and woven bags to ensure moisture resistance and impact protection during shipping. Packaging solutions can also be customized according to shipment volume and specific customer requirements.
FAQ – E2055 Rail Clip
Q1: What is the main function of the E2055 Rail Clip?

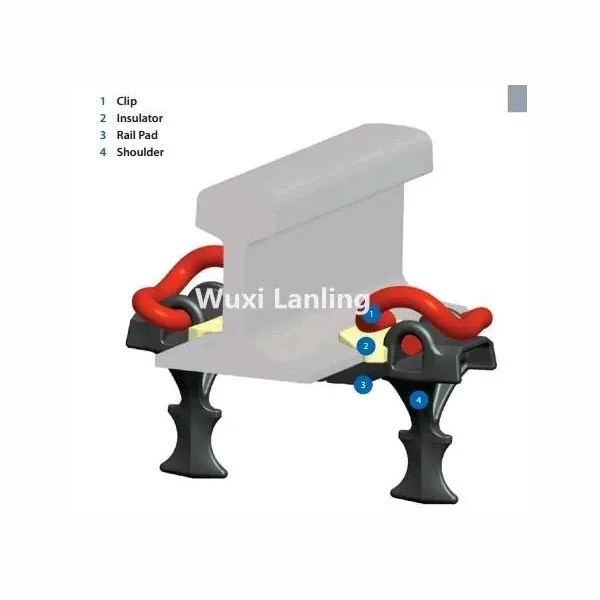

It provides elastic clamping force to securely fasten rails to sleepers, maintaining track gauge and preventing rail movement under dynamic loads.
Q2: What material is used for E2055 Rail Clips?
High-strength forged spring steel, offering excellent fatigue resistance and durability.
Q3: Why is hot forging used for manufacturing E2055 Rail Clips?
Hot forging ensures a uniform microstructure, improving mechanical strength and long-term reliability.
Q4: Is the E2055 Rail Clip suitable for heavy-load railway lines?
Yes, it is designed to perform reliably under heavy axle loads and high-frequency traffic.
Q5: Can LanLing provide customized E2055 Rail Clips?
Yes, specifications, dimensions, and surface treatments can be customized based on project requirements.
Q6: How are E2055 Rail Clips packaged for delivery?
They are packed in moisture-proof, impact-resistant export packaging to ensure safe transportation.
