E Clip Rail
The E Clip Rail is an essential elastic fastening component in modern railway track systems. It is used to firmly secure rails to concrete sleepers or base plates, helping maintain correct track gauge and long-term stability. With its reliable elastic clamping force, the E Clip Rail effectively prevents rail uplift and unwanted movement caused by heavy loads, vibration, and temperature changes...
- Product Introduction
The E Clip Rail is an essential elastic fastening component in modern railway track systems. It is used to firmly secure rails to concrete sleepers or base plates, helping maintain correct track gauge and long-term stability. With its reliable elastic clamping force, the E Clip Rail effectively prevents rail uplift and unwanted movement caused by heavy loads, vibration, and temperature changes. The E clip rail produced by Wuxi Lanling Railway Equipment Co., Ltd. can be easily installed and ensure that the track does not deviate from the established route, ensuring rail traffic safety and promoting economic and social development!

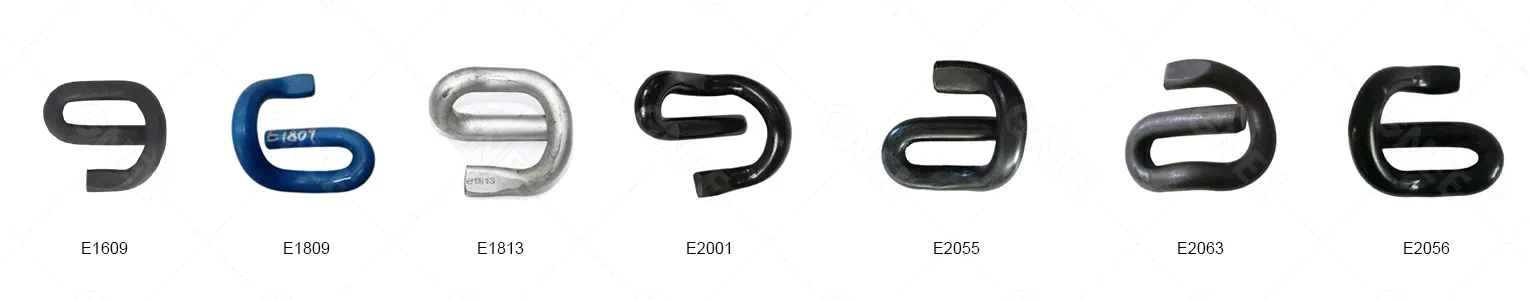

There are many types of elastic rail clips, including rail e-clip, Nabla rail clip, SKL rail clip, Deenik clip, crane rail clip, Russian rail clip, and other standard rail clips. Resilient track clips are widely used in different applications of different types and sizes, such as E2007, E2055, E2056, etc., for split track fastener systems, and E1809, E1817, E1819, etc., for non-split track fastener systems. The products you may need are all produced by Wuxi Lanling Railway Equipment Co., Ltd., welcome to contact us to communicate about the products you are interested in!
Product Specifications
|
Model |
Diameter |
Material |
Under Pressure |
HRC |
Weight |
|
E1609 |
Ø 16mm |
60Si2MnA |
≥950kg |
44-48 |
0.43kg/pc |
|
E1809 |
Ø 20mm |
60Si2MnA |
≥950kg |
44-48 |
0.61kg/pc |
|
E1813 |
Ø 18mm |
60Si2MnA |
≥950kg |
44-48 |
0.62kg/pc |
|
E2001 |
Ø 20mm |
60Si2MnA |
≥950kg |
44-48 |
0.80kg/pc |
|
E2009 |
Ø 20mm |
60Si2MnA |
≥950kg |
44-48 |
0.80kg/pc |
|
E2039 |
Ø 20mm |
60Si2MnA |
≥950kg |
44-48 |
0.80kg/pc |
|
E2007 |
Ø 20mm |
60Si2MnA |
≥950kg |
44-48 |
0.80kg/pc |
|
E2055 |
Ø 20mm |
60Si2MnA |
≥950kg |
44-48 |
0.80kg/pc |
|
E2056 |
Ø 20mm |
60Si2MnA |
≥950kg |
44-48 |
0.80kg/pc |
|
E2063 |
Ø 20mm |
60Si2MnA |
≥950kg |
44-48 |
0.80kg/pc |
Advantage:
1. Factory direct sales
2. Easy to install
3. Durable: 2 years warranty
4. Various standard and OEM services
5. Durable, applicable and safe
Product Quality
We understand that product quality is the foundation of long-term cooperation. As our products are used in the railway industry, where safety and reliability are critical, quality control is never compromised. Lanling E Clip Rails are manufactured under strict quality control to ensure consistent performance, durability, and long service life in demanding railway environments.
Packaging & Transportation
With customers in both domestic and international markets, our product packaging is designed to meet the requirements of long-distance transportation. We use wooden crates, steel pallets, and woven bags to ensure moisture resistance and impact protection during shipping. Packaging solutions can also be customized according to shipment volume and specific customer requirements.
