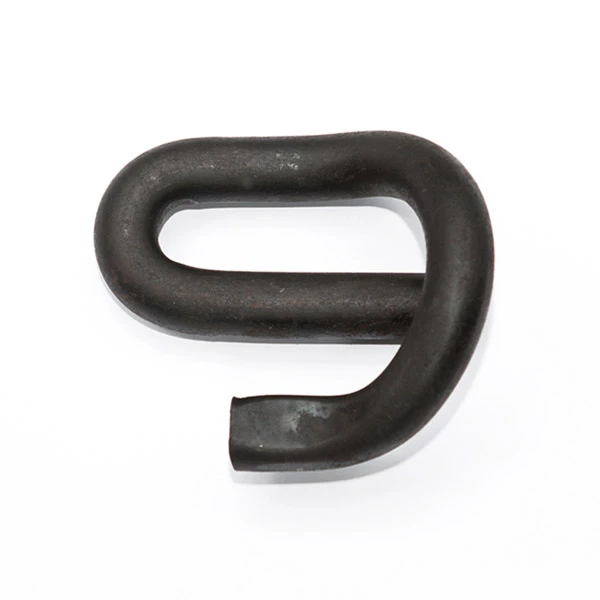

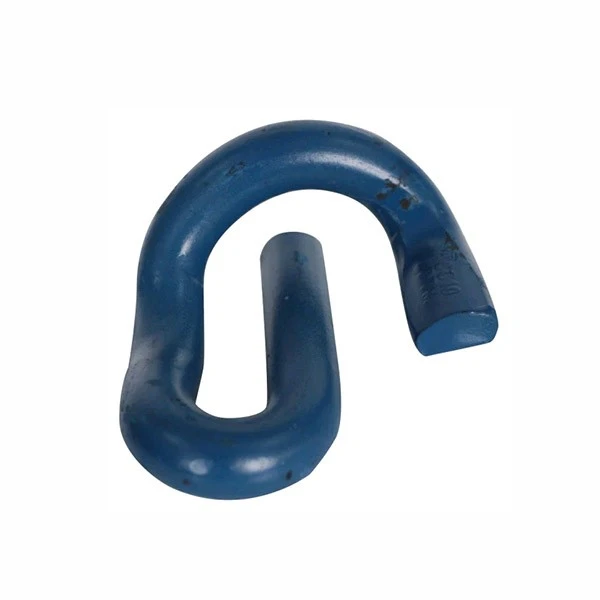

E1609 Rail Clip
The E1609 Rail Clip is an elastic fastening component used to securely fix rails to concrete sleepers or base plates, maintaining accurate track gauge and stability. It is easy to install and use its own perfectly designed fixed rails to ensure safe operation!
- Product Introduction
The E1609 Rail Clip is an elastic fastening component used to securely fix rails to concrete sleepers or base plates, maintaining accurate track gauge and stability. It is easy to install and use its own perfectly designed fixed rails to ensure safe operation!
Wuxi Lanling Railway Equipment Co., Ltd. produces railway fasteners and standard parts. As a leading manufacturer of railway fasteners in China, with a production license from the Ministry of Railways of China, advanced technology, high-precision testing instruments, and services, our products have been widely exported all over the world and are well received!
All products can be customized according to the customer's drawings and samples. Welcome to contact us for more information!
Product Specification
|
Diameter (mm) |
Weight (Kg) |
Toe Load (Kgf) |
|
14 |
0.30 |
400~600 |
|
16 |
0.44 |
500~700 |
|
18 |
0.59 |
800~1000 |
|
20 |
0.76 |
1100~1400 |
E1609 Clip Technical Features:
Materials: 60Si2Cr, 60Si2Mn, 55SiMn
Standards: BS970, GB/T 1222, DIN 17221
Production Performance: Hardness HRC 44-48, Toe Load 500-700kgf
Product Advantage
Stable elastic clamping force for secure rail fixation
Excellent fatigue resistance and long service life
Uniform microstructure ensured by hot forging
Effective vibration absorption and stress reduction
Easy installation and low maintenance cost
Product Quality
We understand that product quality is the foundation of long-term cooperation. As our products are used in the railway industry, where safety and reliability are critical, quality control is never compromised. Lanling E1609 Rail Clips are manufactured under strict quality control to ensure consistent performance, durability, and long-term reliability.
Packaging & Transportation
With customers in both domestic and international markets, our product packaging is designed to meet the requirements of long-distance transportation. We use wooden crates, steel pallets, and woven bags to ensure moisture resistance and impact protection during shipping. Packaging solutions can also be customized according to shipment volume and specific customer requirements.
FAQ – E1609 Rail Clip
Q1: What is the main function of the E1609 Rail Clip?
It provides an elastic clamping force to securely fasten rails to sleepers while maintaining correct track gauge and alignment.
Q2: What material is used for E1609 Rail Clips?
They are made from high-strength forged spring steel for excellent fatigue resistance and durability.
Q3: Why is hot forging important for E1609 Rail Clips?
Hot forging ensures a uniform microstructure, improving mechanical strength and long-term reliability under dynamic loads.
Q4: Where are E1609 Rail Clips commonly used?
They are widely used in conventional railways, metro systems, high-speed rail, and heavy-haul railway lines.
Q5: Can LanLing supply customized E1609 Rail Clips?
Yes, LanLing offers customization according to drawings, standards, and specific project requirements.
Q6: How are E1609 Rail Clips packaged for export?
They are packed in moisture-proof and impact-resistant export packaging to ensure safe international transportation.
