Railway E Clip

Among the most popular rail fasteners in contemporary railway fastening systems are rail E clips. In order to lessen track deformation and increase the overall service life of railway infrastructure, they are made to maintain precise and stable track alignment even under harsh operating conditions.

Rail E clips come in a variety of kinds and sizes and are used in a broad range of rail fastening solutions. In order to accommodate various track designs and installation specifications, common kinds include E2007, E2055, and E2056 for split rail fastening systems and E1809, E1817, and E1819 for non-split rail fastening systems.

Lanling is a skilled producer in China's rail fastener market with the technological capacity to create elastic rail clips that satisfy various axle load and toe load specifications. You may attach rails to concrete, steel, or wooden sleepers using our rail E clips. Lanling supports railway projects all over the world by providing a wide range of elastic rail fasteners, such as Nabla rail clips, SKL rail clips, Deenik rail clips, crane rail clips, Russian rail clips, and other standard rail clip solutions.

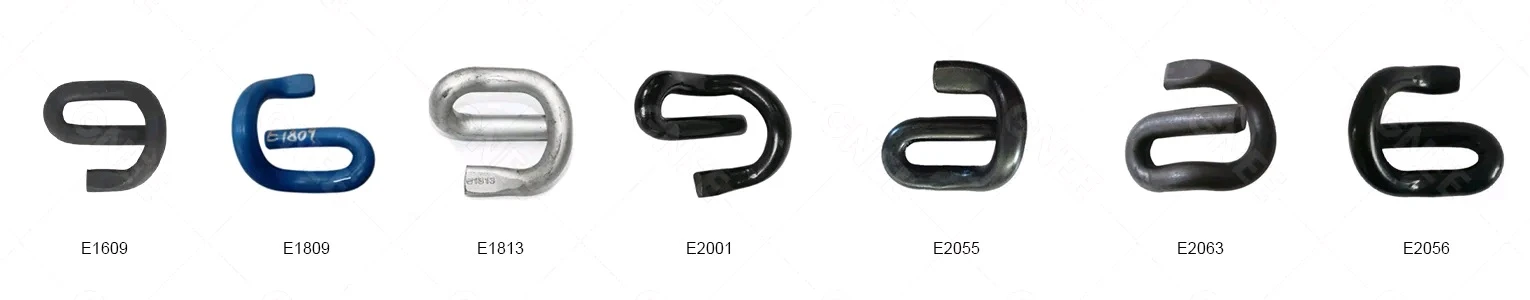

Model	Diameter	Material	Under Pressure	HRC	Weight
E1609	Ø 16mm	60Si2MnA	≥950kg	44-48	0.43kg/pc
E1809	Ø 20mm	60Si2MnA	≥950kg	44-48	0.61kg/pc
E1813	Ø 18mm	60Si2MnA	≥950kg	44-48	0.62kg/pc
E2001	Ø 20mm	60Si2MnA	≥950kg	44-48	0.80kg/pc
E2009	Ø 20mm	60Si2MnA	≥950kg	44-48	0.80kg/pc
E2039	Ø 20mm	60Si2MnA	≥950kg	44-48	0.80kg/pc
E2007	Ø 20mm	60Si2MnA	≥950kg	44-48	0.80kg/pc
E2055	Ø 20mm	60Si2MnA	≥950kg	44-48	0.80kg/pc
E2056	Ø 20mm	60Si2MnA	≥950kg	44-48	0.80kg/pc
E2063	Ø 20mm	60Si2MnA	≥950kg	44-48	0.80kg/pc





 Structural configuration

 Designed with an "E"-shaped profile, this geometry enables effective interaction with other fastening components during both installation and service. It works in close coordination with embedded iron seats, insulating gauge blocks, and related elements to ensure reliable rail clamping and overall fastening stability.



 Clamping force

 Each rail clip provides an initial clamping force of approximately 10–15 kN, delivering sufficient holding power to firmly secure the rail and maintain safe, stable track conditions under dynamic train loads.



 Elastic performance

 With an elastic working range of about 10–15 mm, the clip is capable of absorbing vibrations and impact forces generated during train operation, helping to reduce stress on both the rail and the supporting structure.



 Application fields

Well suited for heavy-haul railways, high-speed passenger lines, and urban rail transit systems where high standards of track stability, ride comfort, and long-term reliability are required.





With over 30 years of expertise and an annual production capacity of 10 million sets, Lanling Railway is a prominent manufacturer of rail fastening systems that exports to over 30 countries. With a total track laying of 50,000 kilometres, our products have been used on over 500 railway projects, including over 100 high-speed railway projects. Our products function steadily and dependably between -40°C and 80°C. Over 85% of our clients have long-term cooperative partnerships, and customer satisfaction consistently stays above 93 points because of our strict quality control and expert technical assistance.

We understand that product quality is the foundation of long-term cooperation. As our products are used in the railway industry, where safety and reliability are critical, quality control is never compromised. LanLing E Clip Rails are manufactured under strict quality control to ensure consistent performance, durability, and long service life in demanding railway environments.





With customers in both domestic and international markets, our product packaging is designed to meet the requirements of long-distance transportation. We use wooden crates, steel pallets, and woven bags to ensure moisture resistance and impact protection during shipping. Packaging solutions can also be customized according to shipment volume and specific customer requirements.



FAQ:

1. Q: Are you a manufacturer, trading company or a third party?

A: We are manufacturer and we have established our own company since our establishment in 1989.



2. Q: Where is your factory?

A: Our factory address is: No. 168, Nanfeng 1st Road, Meicun, Wuxi City, Jiangsu Province, China.



3. Q: How can I go to your factory?

A: Our factory is near Shanghai Airport. You can take the train from Hongqiao Station to our Wuxi East Station. The fastest time is 20 minutes. I will pick you up at the East Station.



4. Q: Can I book a hotel for me if I need to stay at your house for a few days?

A: I have always been happy to provide hotel reservations.



5. Q: What is your minimum order quantity, can you send me samples?

A: Our minimum order quantity is a 20-foot cabinet. The specifications of different products are different, and the final quantity needs to be negotiated separately. Regarding samples, if it is a mature product, we can provide samples for free, you only need to pay the international express fee. If it is a new product, you need to pay the mold fee to make a sample for you, and after the order reaches 100,000 pieces, the mold fee will be refunded to you.
