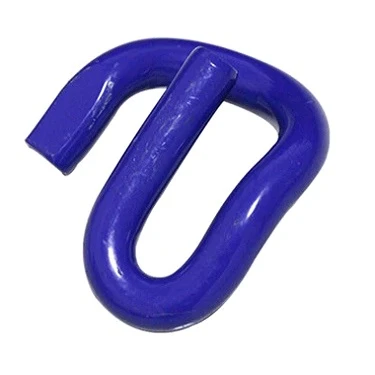

Anti Theft Elastic Rail Clips
A specific elastic fastening device called the Anti-Theft Elastic Rail Clip is made to fasten rails to base plates or sleepers without allowing them to be removed without authorization. These clips, which were designed for contemporary railroad systems, offer dependable clamping force to preserve precise track gauge and long-term track stability in the face of high loads, vibration, and temperature changes...
- Product Introduction
A specific elastic fastening device called the Anti-Theft Elastic Rail Clip is made to fasten rails to base plates or sleepers without allowing them to be removed without authorization. These clips, which were designed for contemporary railroad systems, offer dependable clamping force to preserve precise track gauge and long-term track stability in the face of high loads, vibration, and temperature changes.

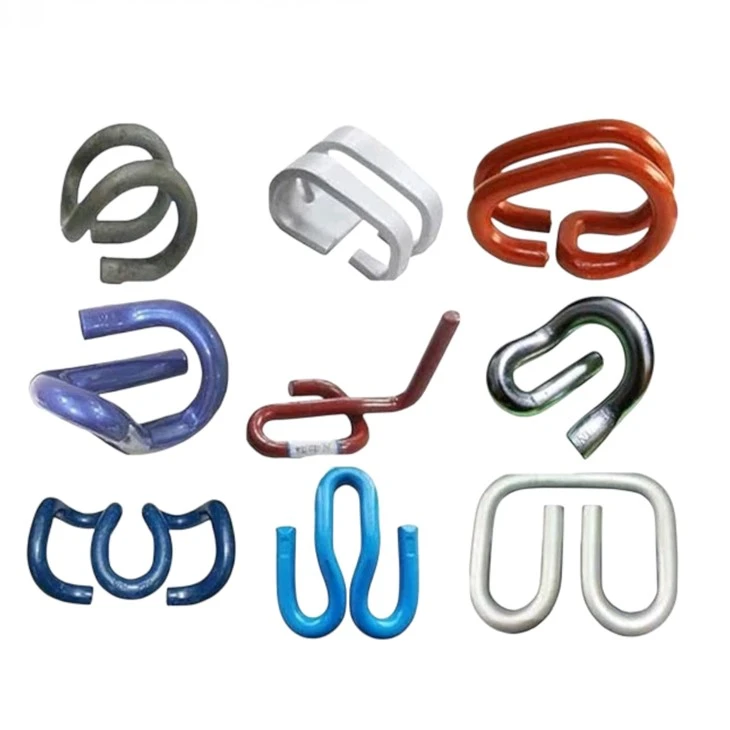

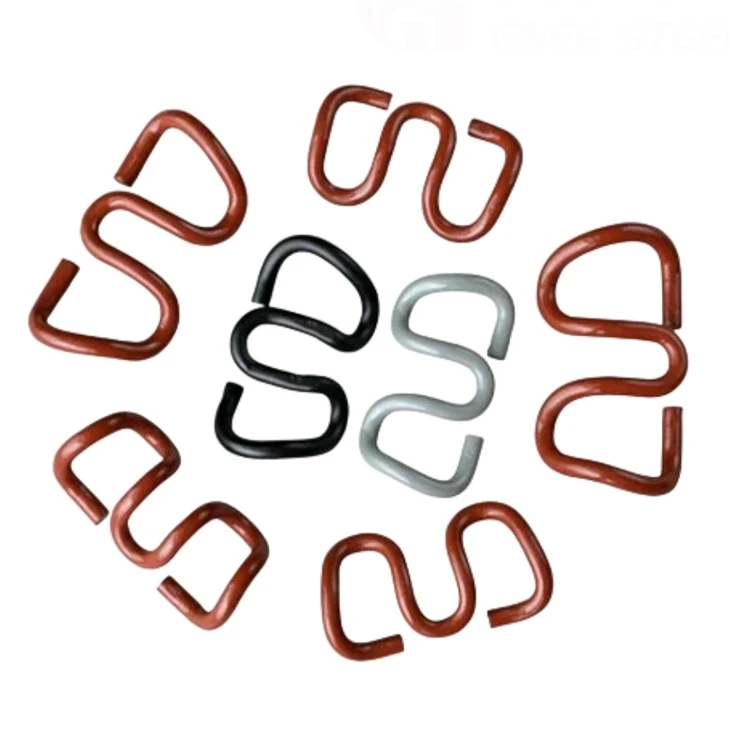

The Anti-Theft Elastic Rail Clip, made by Lanling in our own manufacturing facilities, ensures secure and steady rail performance even in high-risk situations by combining durability, elasticity, and theft-resistant design. The comprehensive range of our anti-theft rail clips spans sizes from 12mm to 20mm, featuring types such as E1809, E2009, E2055, SKL1, SKL3, SKL12, SKL14, and more.
Anti Theft Elastic Rail Clip Specification
| Type | E clip (e1809, e2006,e2007,e2009,etc) | |||
| Skl clip (skl1,skl3,skl12,skl14) | ||||
| Or the type by customers' drawings | ||||
| Material | 60Si2MnA | 60Si2CrA | 55Si2Mn | 38Si7 |
| Chemical composition(%) | C:0.56-0.64, Mn:0.60-0.90, Si:1.60-2.00, Cr:≤0.35, P:≤0.03, S:≤0.03 | C:0.56-0.64, Mn:0.40-0.70, Si:1.40-1.80,Cr:0.70-1.00 P:≤0.03, S:≤0.03 | C:0.52-0.60, Mn:0.60-0.90, Si:1.50-2.00,Cr:≤0.35 P:≤0.03, S:≤0.03 | C:0.35-0.42, Mn:0.50-0.80, Si:1.50-1.80, P:≤0.03, S:≤0.03 |
| Hardness | For e clip: 44-48HRC For skl clip: 42-47HRC |
|||
| Fatigue life | for Dia.18 is 3 millions cycles without breaking for Dia.20 is 5 millions cycles without breaking |
|||
| Surface | plain (oiled), Oxide black, color painting, HDG, Zinc Plating... | |||
| Standard refers | DIN17221, BS970, GB/T1222 | |||
Product Advantages
Theft-resistant design: Prevents unauthorized removal of rail clips
Stable clamping force: Maintains rail position under heavy axle loads and vibration
High fatigue resistance: Forged spring steel with controlled heat treatment ensures long-term performance
Wide compatibility: Works with various rail types, sleepers, and fastening systems
Improved track stability: Absorbs vibration and impact, reducing maintenance frequency
Custom manufacturing: Lanling supports production according to customer drawings and specifications
Products Description
We understand that product quality is the foundation of long-term cooperation. As our products are used in the railway industry, where safety and reliability are critical, quality control is never compromised. Lanling implements strict quality control throughout the entire production process, including raw material inspection, forging, heat treatment, performance testing, and dimensional checks, ensuring each Anti-Theft Elastic Rail Clip meets international railway standards.
Packaging & Transportation
- Standard export packaging with steel straps and reinforced pallets
- Anti-rust protection applied for sea shipments
- Customized packaging available according to client requirements
- Flexible logistics solutions for bulk orders and international shipping
