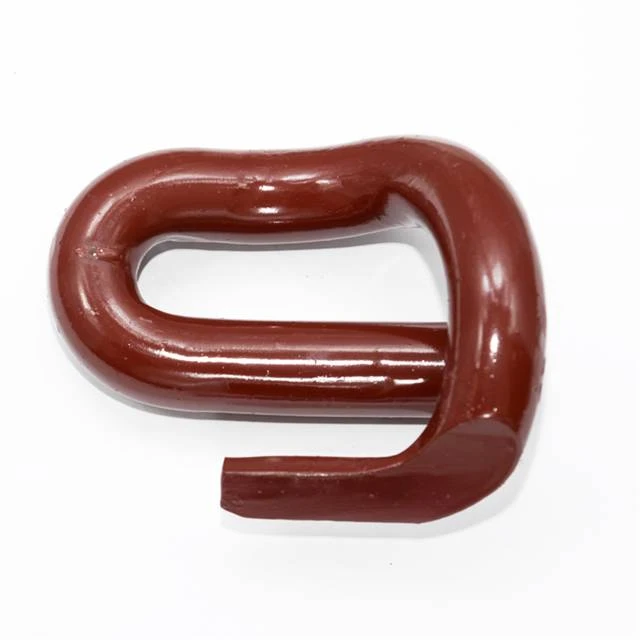

E Clip Rail Fastening

One of the most used rail fasteners in railway fastening systems are rail clips. In order to prolong the service life of railroad tracks, they are employed to provide positive and long-lasting track alignment even in the most adverse operating situations.
LanLing rail E clips are manufactured from high-quality spring steel bars with diameters ranging from 18 to 23 mm and formed through a forging process. This construction provides excellent durability and fatigue strength, allowing the clips to perform reliably under long-term and complex loading conditions in railway tracks.
The rail E clips are compatible with various rail types, sleepers, and track systems, meeting requirements under UIC, EN, AREMA, and other international standards. In addition, LanLing supports large-scale production strictly according to customer-provided drawings to ensure the products match specific project requirements.





Item	Railway E clip
Chemical Composition	60Si2MnA	60Si2CrA	55Si2Mn	38Si7
	C:0.56-0.64, Mn:060-0.90, Si:1.50-2.00, Cr:≤0.35, P:≤0.03, S:≤0.03	C:0.56-0.64, Mn:0.40-0.70, Si:1.40-1.80, Cr:0.70-1.00 P:≤0.03, S:≤0.03	C:0.52-0.60, Mn:0.60-0.90, Si:1.50-2.00, Cr:≤0.35 P:≤0.03, S:≤0.03	C:0.35-0.42, Mn:0.50-0.80, Si:1.50-1.80, P:≤0.03, S:≤0.03
Hardness	44-48 HRC
Fatigue Life	3-5 million cycles without breaking
Surface	Plain Oiled, Oxygen Black, Zinc Plated, Hot Dip Galvanized, Dacro coating, Color Painting
Standard	UIC, AREMA, BS, RDSO, DIN, JIS, ISCR, VALEC, GOSTR- EASC, GB/T or other upon requirements





 Structural shape

The rail clip's distinctive "E" shape enables it to work more effectively with other fastening components during installation and stress, such as firmly joining with embedded iron seats, insulating gauge blocks, etc., to play a stable buckling role;

 Buckle pressure

During train operation, a single railway clip's initial buckle pressure can reach between 10 and 15 kN, which can successfully fix the rails and guarantee their stability and safety;

 Elastic range

The vibration and impact energy produced by train operation can be efficiently absorbed by the elastic range, which is between 10 and 15 mm;

 Use cases

Ideal for high-speed passenger dedicated lines, heavy-duty railroads, urban rail transportation, and other lines with strict track stability and comfort requirements.

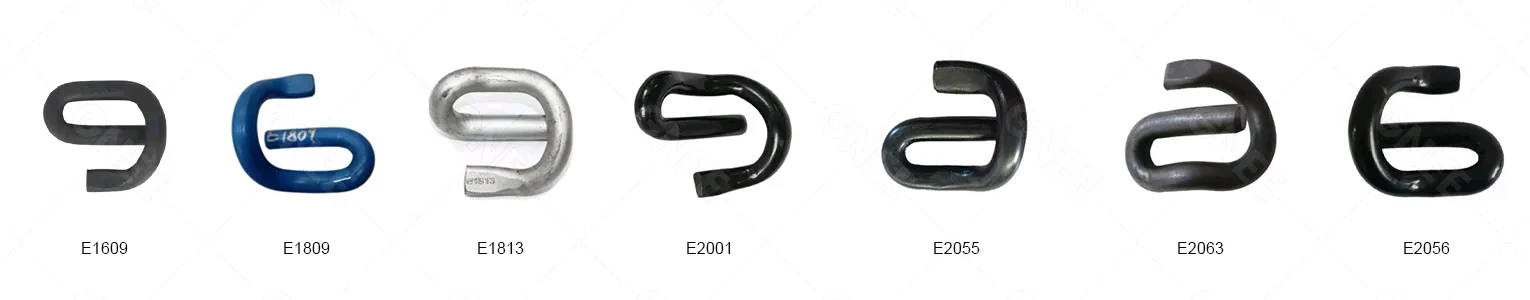

Model	Diameter	Material	Under Pressure	HRC	Weight
E1609	Ø 16mm	60Si2MnA	≥950kg	44-48	0.43kg/pc
E1809	Ø 20mm	60Si2MnA	≥950kg	44-48	0.61kg/pc
E1813	Ø 18mm	60Si2MnA	≥950kg	44-48	0.62kg/pc
E2001	Ø 20mm	60Si2MnA	≥950kg	44-48	0.80kg/pc
E2009	Ø 20mm	60Si2MnA	≥950kg	44-48	0.80kg/pc
E2039	Ø 20mm	60Si2MnA	≥950kg	44-48	0.80kg/pc
E2007	Ø 20mm	60Si2MnA	≥950kg	44-48	0.80kg/pc
E2055	Ø 20mm	60Si2MnA	≥950kg	44-48	0.80kg/pc
E2056	Ø 20mm	60Si2MnA	≥950kg	44-48	0.80kg/pc
E2063	Ø 20mm	60Si2MnA	≥950kg	44-48	0.80kg/pc



Any other special requirements for E-type spring clips, provide drawings and we will customize them for you!





A. High-quality raw materials: We mainly select raw materials from large steel mills (such as TPCO, BAO STEEL, SHA STEEL), which are the best and largest raw material manufacturers in China.



B. Rigorous physical/chemical testing procedures: meet product design and process requirements and provide reliable test data.



C. Short delivery time: 15-20 days if one container. And provide standard stock, which can be delivered as soon as possible.



D. Safe packaging: Before shipment, according to customer requirements, the products are neatly arranged in woven bags and then packed into lattice boxes or wooden boxes that meet export requirements.



E. Best after-sale service: More than 90% of products are sold to North America, Southeast Asia, the Middle East, and Europe; all products are trusted by domestic and foreign customers.





Lanling specialises in railway fastening systems with extensive manufacturing experience. We provide secure export packaging suitable for long-distance transportation and responsive technical support to ensure smooth project execution. We understand that product quality is the foundation of long-term cooperation. As our products are used in the railway industry, where safety and reliability are critical, quality control is never compromised. LanLing E1813 Rail Clips are produced under strict quality control to ensure reliable performance and long service life.





With customers in both domestic and international markets, our product packaging is designed to meet the requirements of long-distance transportation. We use wooden crates, steel pallets, and woven bags to ensure moisture resistance and impact protection during shipping. Packaging solutions can also be customized according to shipment volume and specific customer requirements.
