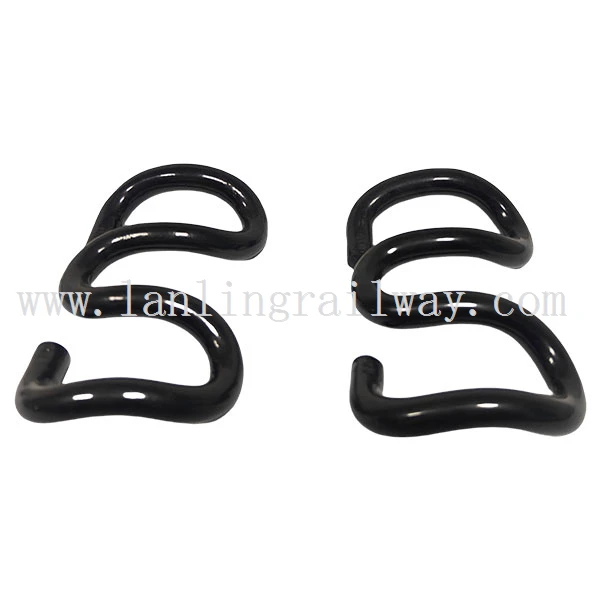

Vossloh SKL Clip Tension Clamp
At Lanling, we manufacture Vossloh SKL clips and rail tension clamps using top-grade spring steel through precision forming and heat treatment. Our SKL tension clamps are fully compatible with Vossloh fastening systems (SKL1, SKL3, SKL12, SKL14) and are widely used in high-speed railways, metro systems, and heavy freight lines around the world...
- Product Introduction
The Vossloh SKL Clip Tension Clamp is a high-performance rail fastening component designed to ensure safe, stable, and long-lasting rail connections. Engineered to deliver excellent elasticity and clamping force, this tension clamp keeps the rail firmly in place while allowing just enough flexibility to absorb vibration and thermal expansion.
At Lanling, we manufacture Vossloh SKL clips and rail tension clamps using top-grade spring steel through precision forming and heat treatment. Our SKL tension clamps are fully compatible with Vossloh fastening systems (SKL1, SKL3, SKL12, SKL14) and are widely used in high-speed railways, metro systems, and heavy freight lines around the world.
Product Specifications
| Name | Vossloh SKL Clip / Tension Clamp |
| Material | 60Si2MnA or 38Si7 Spring Steel |
| Hardness | HRC 42–48 |
| Surface Treatment | Plain (Oiled), Epoxy Coated, or Zinc Galvanized |
| Tensile Strength | ≥1470 MPa |
| Applicable Rail Type | UIC54, UIC60, 50kg, 60kg Rails |
| Standard | DIN, UIC, AREMA, GB/T |
| Customized tension clamps and coatings are available upon request. | |
Product Advantages
High Elasticity & Strong Grip
Each Vossloh SKL clip tension clamp maintains consistent rail pressure, reducing vibration and rail movement.
Long Service Life
Advanced heat treatment ensures the clamp retains its spring force even after years of use.
Corrosion Resistance
Optional epoxy or zinc coatings provide long-term protection in coastal, humid, or high-temperature environments.
Easy Installation
Designed for quick assembly and minimal maintenance on-site.
Our Vossloh SKL clip tension clamps combine German-standard precision with Chinese manufacturing efficiency - offering you great performance at a competitive price.
Why Choose Us
With over 30 years of manufacturing experience, Wuxi Lanling Railway Equipment Co., Ltd. is a trusted supplier of railway fastening systems. Our product range includes SKL clips, rail bolts, base plates, elastic rail clips, and tension clamps for various track applications. We serve customers in Europe, South America, Asia, and Africa - delivering both standard and customized fastening solutions.
Quality Control
Every Vossloh SKL clip tension clamp goes through a strict quality process:
- Raw Material Inspection – to ensure compliance with mechanical strength standards.
- Precision Heat Treatment – for consistent hardness and elasticity.
- Fatigue, Salt Spray, and Bending Tests – to guarantee performance and corrosion resistance.
- Final Dimensional Inspection – ensuring perfect fit before packaging.
We follow ISO 9001 and EN 13481 international quality systems to ensure stable, reliable performance in every shipment.
Packaging & Transportation
Our Vossloh SKL clip tension clamps are packed in strong woven bags, cartons, or wooden pallets, then wrapped in plastic to prevent corrosion during shipping. We provide flexible delivery options - by sea, air, or land - to meet your project deadlines efficiently.
After-Sales Service
At Wuxi Lanling Railway Equipment Co., Ltd., we don't just sell products - we build partnerships. Our technical support team is always available to provide guidance on installation, maintenance, or project customization. Quick response and professional service are guaranteed before and after your purchase.
Looking for a reliable supplier of Vossloh SKL Clip Tension Clamps? Contact Wuxi Lanling Railway Equipment Co., Ltd. today to get detailed specifications and a competitive quotation. Send us your inquiry now - let's build stronger, safer railways together!
