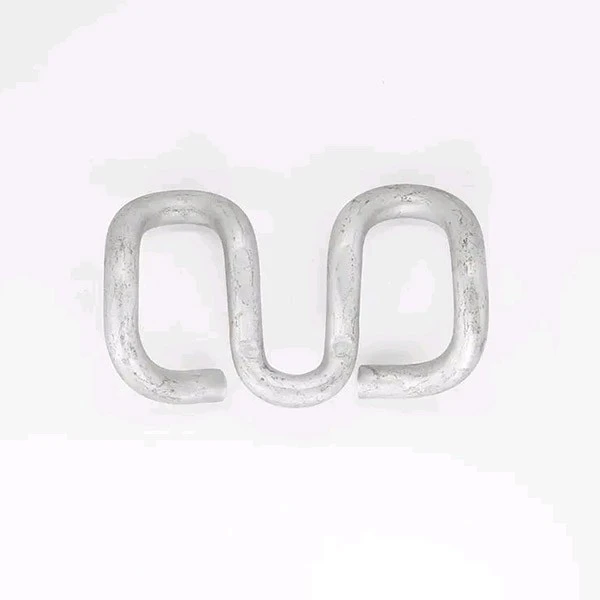

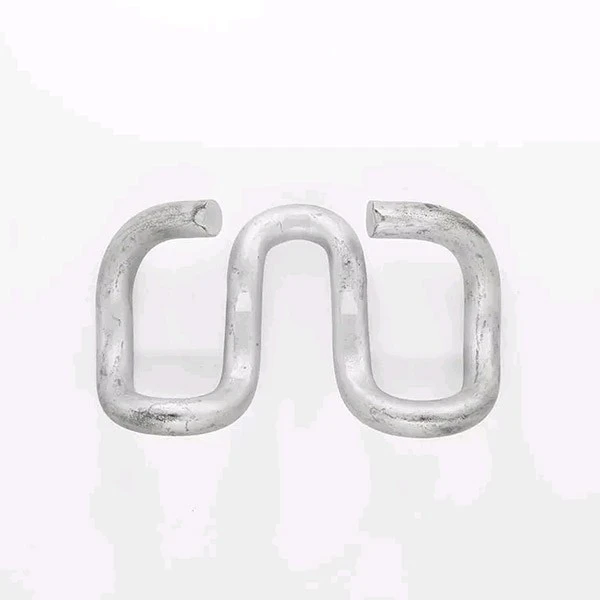

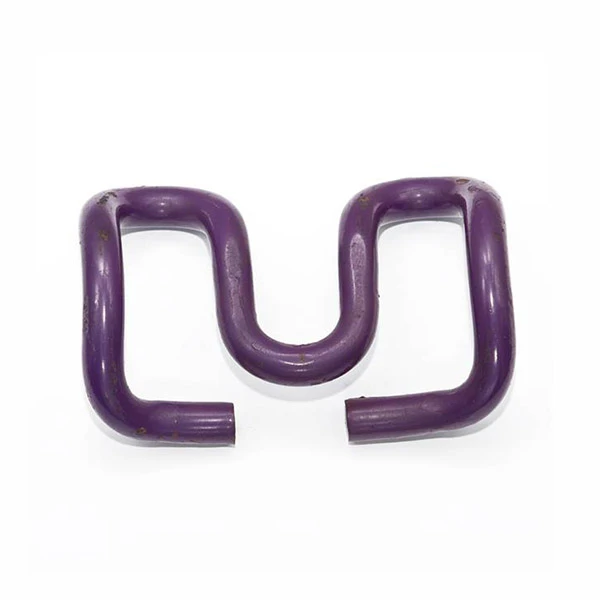

SKL1 Rail Clip
SKL1 Rail Clip is a W-type railway elastic fastener. It stabilizes the rail by its own characteristics and reduces the creep of the rail. The effect has been greatly improved on the basis of the original welding or screw fixing!
- Product Introduction
The SKL1 Rail Clip, sometimes referred to as the SKL1 Railway Clip or SKL1 Rail Track Clip, is within the category of SKL Rail Clips. It is a versatile screw-based fastening option for concrete ties. The SKL1 clip is a tried-and-true option for ballasted track systems in most nations since it is straightforward, dependable, and secure.
Product Specification
| Product Name | W Shape SKL 1 |
| Raw material | 60Si2CrA |
| Diameter | 13 mm |
| Weight | 0.48 kg |
| Hardness | 42-47 |
| Toe Load | 8.0-12 KN |
| Surface | according to customer requirements |
| Fatigue | 3 million cycles without cracking |
| Application | Railway Fastening System |
SKL Rail Clip Provided By Lianling
|
Type |
SKL 1 Rail Clip |
SKL 3 Rail Clip |
SKL 12 Rail Clip |
SKL 14 Rail Clip |
|
Secification |
ø13 |
ø13 |
ø13 |
ø14 |
|
Hardness |
42-47HRC |
42-47HRC |
42-47HRC |
42-47HRC |
|
Weight(kg) |
0.49 |
0.53 |
0.53 |
0.505 |
Why Choose Lianling Rail Fasteners?
Wuxi Lanling Railway Equipment Co., Ltd. is trusted for its long manufacturing experience, complete railway fastening product range, and stable quality. With advanced automated production lines, strict in-house testing, and CRCC and ISO 9001 certifications, Lanling ensures reliable performance, consistent supply, and long service life for railway projects worldwide.
