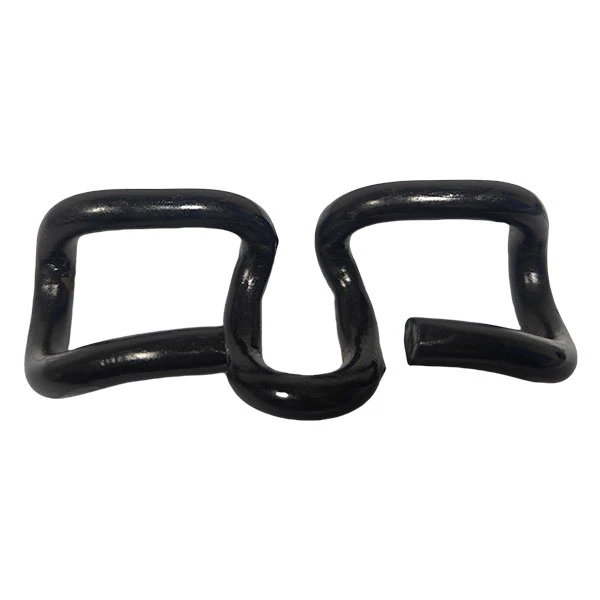

Professional Skl Clip
A premium rail fastening component, the Professional SKL Clip is made to create strong, robust, and long-lasting connections between the sleeper and the rail. The SKL clip reduces vibration, noise, and track deformation by ensuring that rails stay securely in place under dynamic train loads as part of a comprehensive rail fastening system...
- Product Introduction
A premium rail fastening component, the Professional SKL Clip is made to create strong, robust, and long-lasting connections between the sleeper and the rail. The SKL clip reduces vibration, noise, and track deformation by ensuring that rails stay securely in place under dynamic train loads as part of a comprehensive rail fastening system.
The Professional SKL Clip is made by Wuxi Lanling Railway Equipment Co., Ltd. using precision forging and heat treatment techniques on premium spring steel. It is perfect for heavy-duty and high-speed railway applications because of its exceptional flexibility, fatigue resistance, and corrosion protection.
Railway SKL Clips
| Model | Diameter | Material | Hardness | Clamping Force | Surface Treatment | Applicable Extreme Scene | Anti-Corrosion Grade |
|---|---|---|---|---|---|---|---|
| SKL 12-Sand | φ12mm | 50CrVA | 40–45 HRC | 6–9 kN | Hot-dip galvanizing (≥90μm) | Desert Sandstorm Area | C4 (ISO 12944) |
| SKL 14-Coast | φ14mm | 60Si2MnA | 43–48 HRC | 10–14 kN | Dacromet (≥12μm) + Zinc Plating | Coastal Salt-Fog Area | C5-M (ISO 12944) |
| SKL 15-Cold | φ16mm | 55SiMnVB | 45–50 HRC | 18–25 kN | Dacromet + Sealant (≥15μm) | -40℃ Cold Plateau Area | C4 (ISO 12944) |
| SKL 20-HS350 | φ15mm | 60Si2CrVA | 46–52 HRC | 15–20 kN | Ceramic Coating (≥20μm) | 350km/h HSR Vibration Area | C4 (ISO 12944) |
| SKL 11-Tunnel | φ11mm | 60Si2MnA | 39–44 HRC | 5–8 kN | Epoxy Coating (≥60μm) | Humid Metro Tunnel | C4 (ISO 12944) |
Product Advantages
Excellent Elasticity & Strength
Maintains stable clamping force and track alignment under high-frequency vibration.
Corrosion & Fatigue Resistance
Surface-treated for extended service life in harsh outdoor or coastal conditions.
Precision Manufacturing
Produced using automatic induction heating and controlled quenching for uniform quality.
Customizable Design
Available in various sizes, materials, and finishes according to customer requirements.
Reliable Performance
Proven in high-speed rail, heavy-haul, and metro track systems worldwide.
Product Applications
The Professional SKL Clip is widely used in:
High-speed railways and mainline tracks
Metro and light rail transit systems
Heavy freight and mining railways
Industrial railways and logistics lines
Railway maintenance and construction projects
Why Choose Lanling Railway
Quality Control
All SKL Clip Rail Fasteners produced by Wuxi Lanling Railway Equipment Co., Ltd. undergo strict quality inspection at every stage - from raw material testing to hardness, fatigue, and dimensional accuracy checks. Our production process complies with ISO9001:2015 and CRCC certification standards, ensuring that every clip meets international railway safety and performance requirements.
Packaging & Transportation
Each Professional SKL Clip is coated with anti-rust oil, securely packed in woven bags or wooden pallets, and labeled for easy identification. We provide flexible logistics solutions to ensure fast, safe, and cost-effective delivery worldwide.
Our Strength
- Over 30 years of experience in railway fastener manufacturing
- Full in-house production lines for spring clips, bolts, pads, and fastener components
- CRCC and ISO9001-certified facilities
- Exported to over 20 countries, including the USA, Germany, Japan, India, and Southeast Asia
- Professional R&D team providing custom engineering and OEM/ODM solutions
We offer complete technical support, installation guidance, and quick response after-sales service. Every Professional SKL Clip is backed by our quality assurance policy, ensuring long-term reliability and customer satisfaction.
