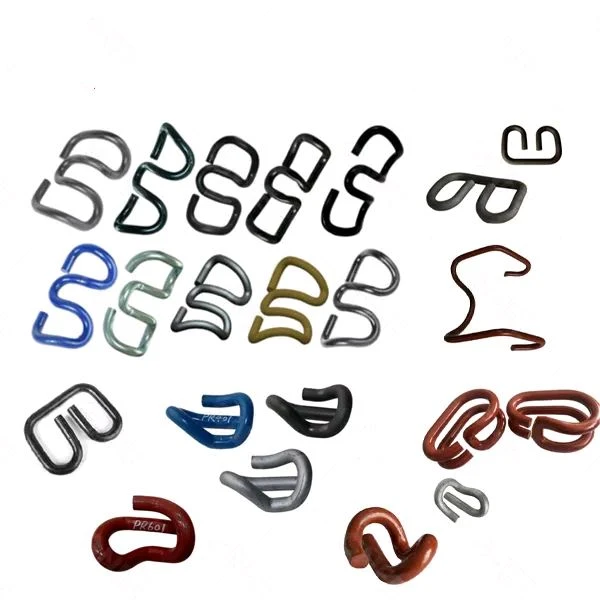

Railway Rail Clip

Lanling specializes in manufacturing high-quality rail fastening clips for railway tracks, including E-clips, SKL series, KPO, Nabla, PR series, fast clips, and fully customizable clips to meet specific project requirements. Made from premium spring steel grades such as 60Si7, 65Si7, 55SiCr7, and 60Si2MnA, our clips undergo rigorous testing at every stage of production to ensure outstanding fatigue resistance, durability, and corrosion protection. They are compatible with a variety of international rail standards, including UIC, BS, and JIS, making them suitable for diverse railway networks.

As a China Ministry of Railways-approved manufacturer with over 30 years of experience, Lanling holds ISO9001:2008 certification and utilizes advanced production techniques. We offer custom-made solutions based on customer drawings and provide factory-direct pricing, ensuring high-quality rail clips at competitive rates.

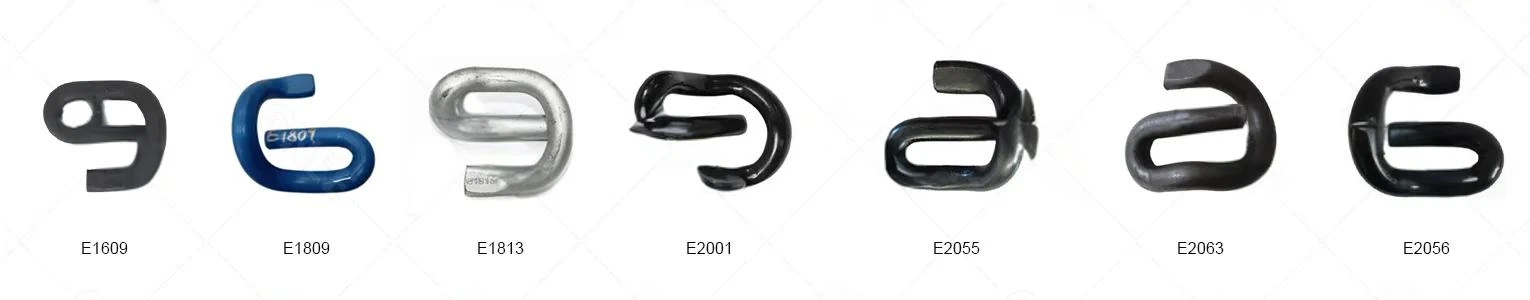

E-Type Clip Types And Specification

Model	Diameter	Material	Hardness
E1809	ø20	60Si2MnA	44-48
E1813	ø18	60Si2MnA	44-48
E2001	ø20	60Si2MnA	44-48
E2039	ø20	60Si2MnA	44-48
E2055	ø20	60Si2MnA	44-48

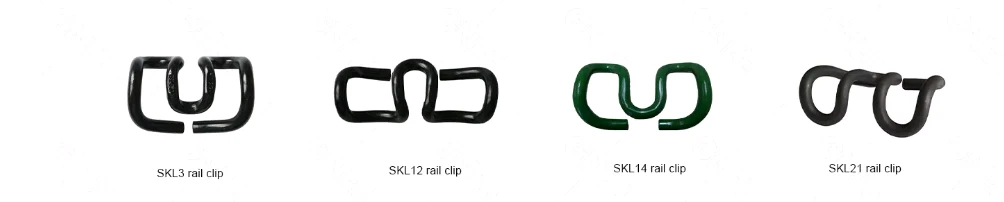

SKL Tension Clamps

Model	Diameter	Material	Hardness
SKL1	ø13	60Si3CrA	42-47
SKL3	ø13	60Si3CrA	42-47
SKL12	ø13	38Si7	42-47
SKL14	ø14	60Si2MnA	42-47

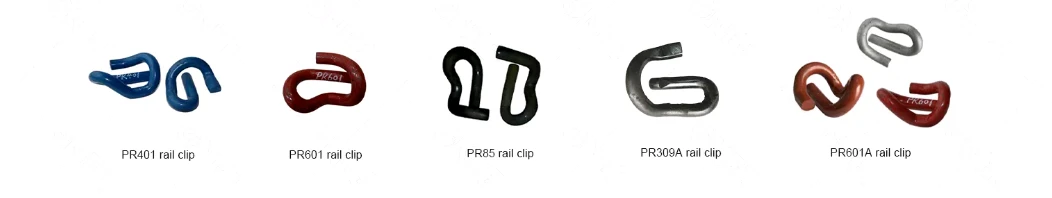

PR Series Rail Clips

Model	PR85 Rail Clip	PR309A Rail Clip	PR401 Rail Clip	PR415 Rail Clip	PR601A Rail Clip
Spec.	ø13	ø19	ø20	ø20	ø22
Hardness	44-48HRC	44-48HRC	44-48HRC	44-48HRC	44-48HRC

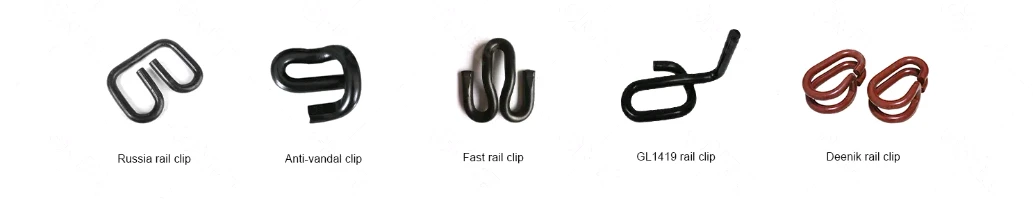

Other Rail Clips

Model	Russia rail clip	Deenik clip	Anti-vandal clip	Fast clip GL1419	GL1419
Diameter	ø18	ø25	ø18	ø15	ø14







Raw material preparation and testing: The main raw material of the railroad clip is spring steel, and sufficient spring steel material is prepared before production begins. Lanling usually tests whether the spring steel material has high strength, good elasticity and wear resistance.

 Bending and cutting

The initial steel will go through the bending and cutting process, the steel will be cut into appropriate lengths according to the design requirements, and bent to form the basic shape of the railroad clip.

 Heat treatment

After cutting and bending, the steel will be heat treated, mainly by heating to a high temperature and then cooling rapidly to improve the strength and elasticity of the steel.

 Forming

The heat-treated steel will be fed into the forming equipment, and through mechanical processing and cold bending processes, it will eventually form a rail fastening clips with the desired shape and size.

 Surface treatment

The rail track clip after forming may be surface treated, such as spraying anti-rust paint or hot-dip galvanizing, etc., to increase the corrosion resistance of the rail track clips.

 Quality inspection

During the production process, the rail fastening clip will be regularly inspected for quality, including size, strength, elasticity, etc., to ensure that it meets the design and standard requirements.

 Packaging and delivery

The rail clips for railway that has passed the quality inspection will be packaged and prepared for delivery. Packaging usually takes into account the protection of the product during transportation and storage.







1). 24 hours online service

Please feel free to contact us. Our sales team will provide you with better pre-sale 24 hours,

2). competitive price

All our products are supplied directly from the factory. So the price is very competitive.

3). ensure

All products come with a one or two year warranty.

4). OEM/ODM

With nearly 30 years of continuous efforts and exploration, we can provide customers with professional advice. Hope to develop together with you.

5). issuer

Recruit distributors and agents worldwide. Timely delivery and professional after-sales service are our top priorities, so we are worthy of your reliance.
