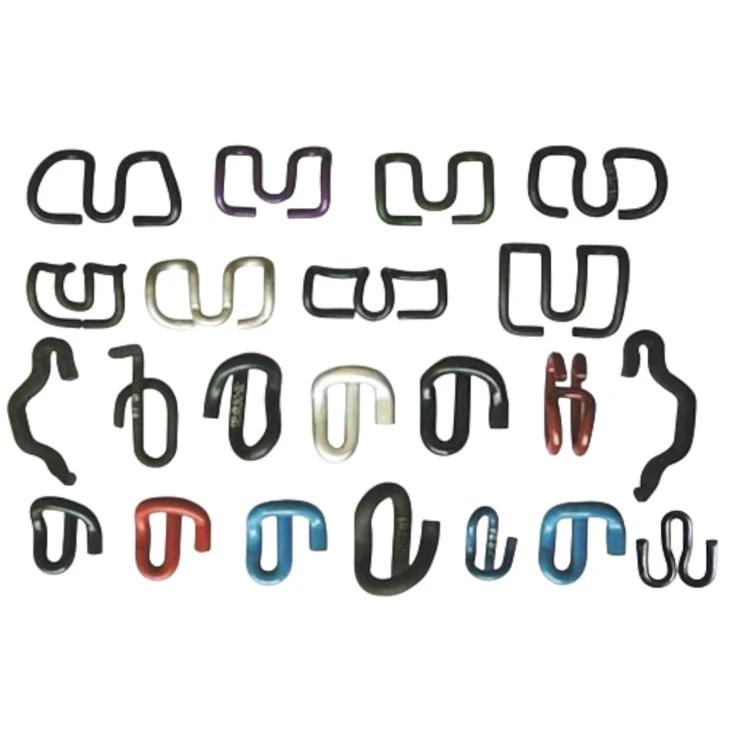

Railway Track Fitting Elastic Rail Clip
The Railway Track Fitting Elastic Rail Clip is a core component of railway fastening systems, designed to securely fix rails onto sleepers or base plates while maintaining stable track gauge and alignment. By utilizing controlled elastic deformation, the elastic rail clip provides continuous clamping force, effectively accommodating vibration, rail movement, and thermal expansion during train operation...
- Product Introduction
The Railway Track Fitting Elastic Rail Clip is a core component of railway fastening systems, designed to securely fix rails onto sleepers or base plates while maintaining stable track gauge and alignment. By utilizing controlled elastic deformation, the elastic rail clip provides continuous clamping force, effectively accommodating vibration, rail movement, and thermal expansion during train operation.
Elastic rail clips are widely used in high-speed railways, conventional rail lines, metro systems, and heavy-haul railways, where long-term stability, safety, and reduced maintenance are essential.
Product Features
Consistent and Stable Clamping Force
By limiting rail loosening brought on by dynamic loads or temperature fluctuations, the elastic structure guarantees a steady rail holding force over time.
Outstanding Resistance to Fatigue
The clip, which is made of premium spring steel and undergoes optimum heat treatment, continues to function dependably even after numerous loading cycles.
Impact Absorption and Vibration
Smoother operation and reduced noise levels are two benefits of using elastic rail clips, which successfully lessen vibration and impact stress between the rail and sleeper.
Strong Flexibility
The clip can be utilized in a variety of railway standards and track designs and is appropriate for a variety of rail sections, sleepers, and fastening methods.
Extended Service Life
Excellent resistance to wear and corrosion is provided by high material strength in conjunction with surface treatment, which lowers the frequency of replacement.

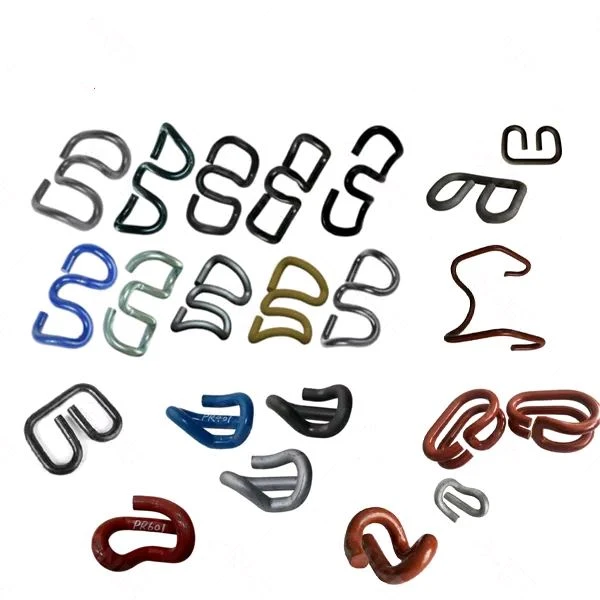

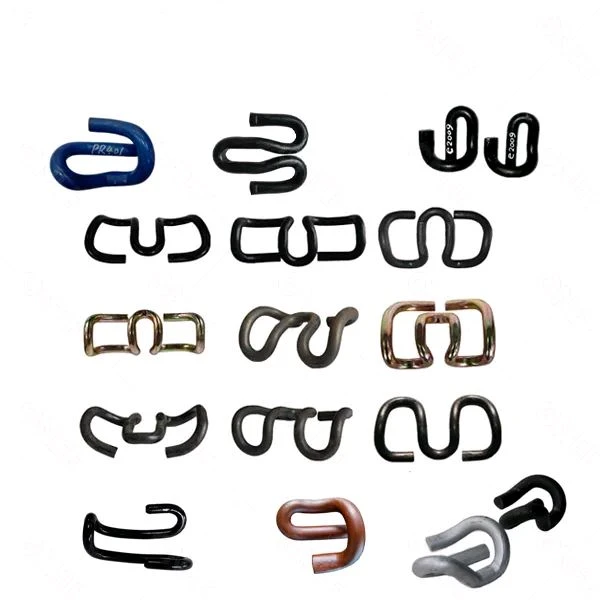

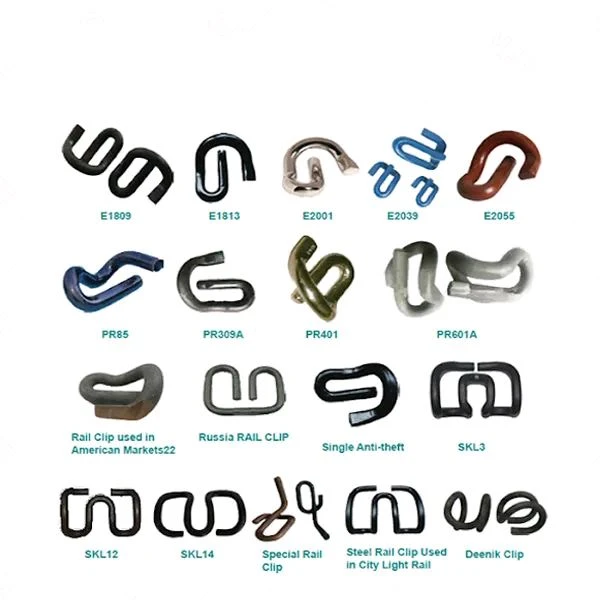

Product Specifications
| Series | Type | Hardness | Material | Fatigue life | Surface |
| E rail clip | E1,E2,E3 | 44-48HRC | 60Si2MnA: C:0.56-0.64, Mn:0.60-0.90, Si:1.60-2.00, Cr:≤0.35, P:≤0.03, S:≤0.03 60Si2CrA: C:0.56-0.64, Mn:0.40-0.70, Si:1.40-1.80,Cr:0.70-1.00 P:≤0.03, S:≤0.03 55Si2Mn: C:0.52-0.60, Mn:0.60-0.90, Si:1.50-2.00,Cr:≤0.35 P:≤0.03, S:≤0.03 38Si7: C:0.35-0.42, Mn:0.50-0.80, Si:1.50-1.80, P:≤0.03, S:≤0.03 |
For Dia.18 is 3 millions cycles without breaking. For Dia.20 is 5 millions cycles without breaking. |
Plain (oiled), Oxide black, color painting or upon customer requirement. |
| E1609 | |||||
| E1809 | |||||
| E1817 | |||||
| E2001 | |||||
| E2006 | |||||
| E2009 | |||||
| E2055 | |||||
| E2056 | |||||
| Vossloh clip& Forged rail clip |
SKL1 | 42-47HRC | |||
| PR rail clip | PR309 | 44-48HRC | |||
| PR401 | |||||
| PR601 | |||||
| PR85 | |||||
| We can also manufacture customized rail clips following your drawings or samples! | |||||
About Us
Lanling has over 30 years of experience in manufacturing railway rail clips, supported by mature production technology, strict quality control, and flexible customization capabilities, delivering reliable and long-lasting fastening solutions for various railway track systems worldwide.
